I Built an Open-Source Vulnerability Scanner with a Real-Time Dashboard — Because Nothing Else Did It All

The Problem That Started It All

If you run servers, write code, or manage containers, you already know the uncomfortable truth: vulnerabilities, exposed secrets, and misconfigurations are everywhere. The question isn't if they exist in your infrastructure — it's whether you know about them.

Most teams fall into one of two traps:

Trap 1 — Enterprise SaaS tools. Snyk, Wiz, Orca, Lacework. Powerful, polished, and expensive. They also require cloud accounts, and your code, container metadata, and scan results travel to someone else's servers. For regulated industries, startups watching spend, or anyone who simply values data sovereignty, this is a deal-breaker.

Trap 2 — Raw CLI tools. Trivy, Grype, Semgrep. Free, open-source, and genuinely excellent. But they give you a wall of JSON in a terminal. No dashboard. No history. No way to see what's happening across twenty servers at once. No scheduling. No aggregation.

I spent months looking for something in the middle — a self-hosted, open-source platform that could:

• Scan Docker images, Git repositories, and local filesystems

• Run agents on multiple machines and aggregate results centrally

• Show everything in a proper dashboard with charts, history, and PDF reports

• Use token authentication so random actors can't POST fake findings to your server

It didn't exist. So I built it.

Introducing VaultHound

VaultHound is a distributed vulnerability scanning platform built on top of Trivy — the best open-source scanner available. It adds everything Trivy is missing: a master server, intelligent agents, a real-time dark-theme dashboard, and a clean installation experience.

The tagline is simple: Scan. Detect. Protect.

GitHub: https://github.com/krishnabagal/VaultHound

How It Works

The architecture is deliberately simple — a master/agent model that anyone who has used Prometheus, Grafana Agent, or Datadog will instantly recognise.

Client Machines                           Master Server
┌──────────────────────┐                 ┌─────────────────────────┐
│  VaultHound Agent    │  HTTPS + Token  │  VaultHound Server      │
│  (Go binary)         │────────────────▶│  (Node.js / Express)    │
│                      │  POST /api/     │                         │
│  • Trivy scans       │  ingest         │  • Aggregates findings  │
│  • Auto-discovers    │                 │  • Deduplicates scans   │
│    containers        │                 │  • Serves dashboard     │
│  • Runs on schedule  │                 │  • Token auth on ingest │
└──────────────────────┘                 └─────────────────────────┘

The Master Server

A Node.js / Express application that does three things:

1. Receives scan results from agents via POST /api/ingest — protected by a Bearer token

2. Stores results with smart deduplication: if the same agent scans the same target again, the result is updated in place rather than creating a new row (so your critical count never artificially inflates)

3. Serves a self-contained dashboard at port 4000 — a single HTML file with Chart.js, no build step, no npm in production

The Agent

A compiled Go binary (/usr/bin/vaulthound-agent) that wraps Trivy and handles reporting. It reads from /etc/vaulthound/agent.conf and supports:

• --dir /var/www/html — filesystem scan (vulns + secrets + misconfigs)

• --image nginx:latest — Docker image scan (vulns + secrets)

• --repo https://github.com/org/repo — Git repository scan (vulns + secrets + misconfigs)

• --auto — auto-discover every running Docker container and scan its image

• --daemon — run continuously on a configurable interval (default: 30 minutes)

The agent is intelligent about container scanning. If you pass a container name or ID instead of an image reference, it resolves the actual image via docker inspect before scanning. In --auto mode it deduplicates — if three containers all run nginx:1.24, it only scans the image once.

By default (no --log flag), the agent shows a clean animated progress bar. Pass --log to get full verbose output for debugging. One-shot scans exit cleanly after completing — only --daemon mode keeps running.

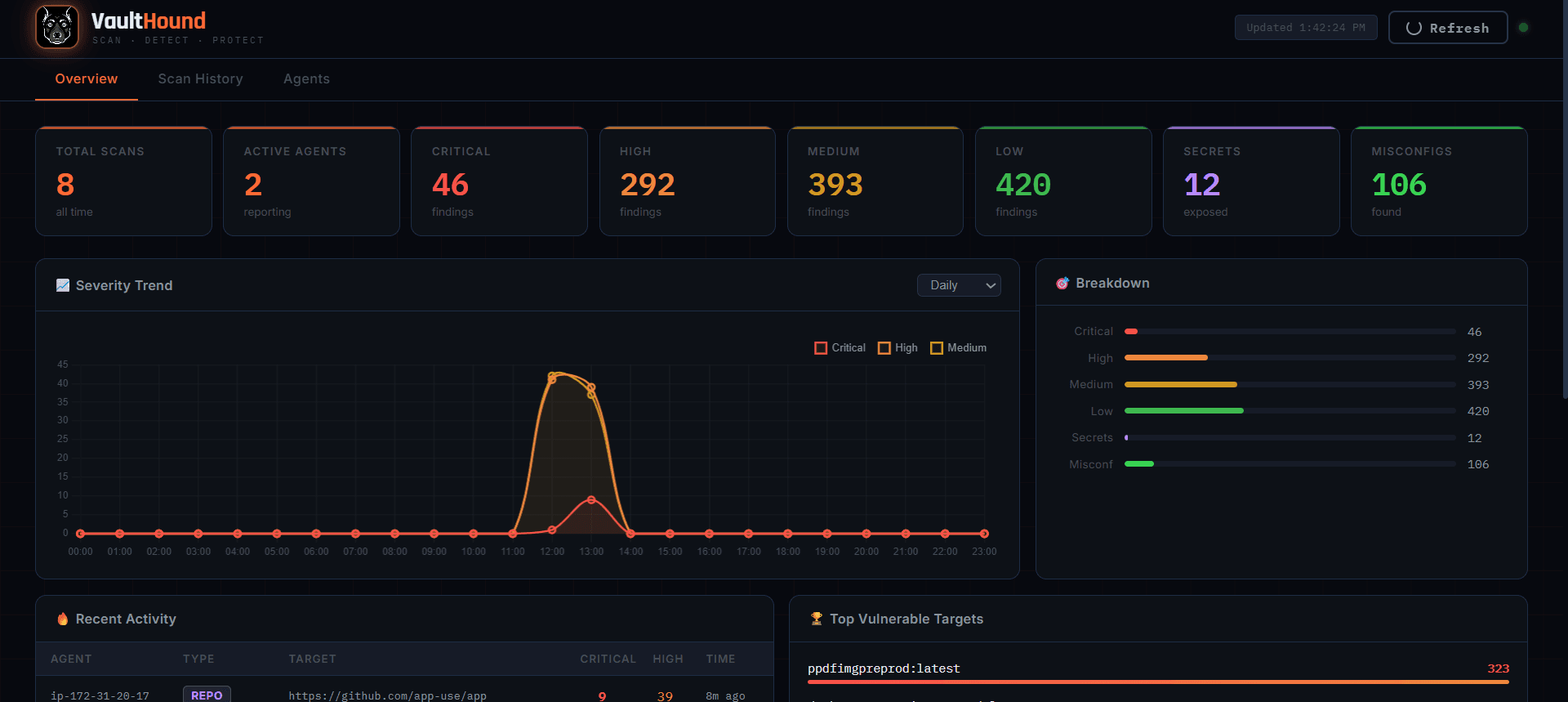

The Dashboard

The dashboard is built as a single self-contained HTML file — no React, no build pipeline, no CDN dependencies at runtime. It's served directly by the Node.js server and works on any modern browser.

Overview tab:

• 8 stat cards: total scans, active agents, critical/high/medium/low findings, secrets exposed, misconfigurations

• Severity trend chart with three modes: Daily (hourly breakdown of today), Weekly (Mon–Sun of current week), Monthly (every day in the current month)

• Severity breakdown bars

• Recent activity table showing the latest scans from all agents

• Top vulnerable targets ranked by total findings

Scan History tab:

• Full scan list filterable by type (image / filesystem / repo)

• View button opens a detail panel with:

  • Severity filter dropdown (All / Critical / High / Medium / Low)

  • Full CVE table with package, installed version, fixed version, severity, title

  • Secrets table with file path and exact line numbers — no hunting through code

  • Misconfigurations table with ID, type, severity, status

  • Export to PDF — branded report with VaultHound header, summary boxes, full data tables

Agents tab:

• Every registered agent with hostname, OS, version, last seen time, and scan count

Security Model

Authentication is handled with a shared Bearer token:

# /etc/vaulthound/server.conf (on master)
SERVER_TOKEN=a1b2c3d4e5f6...  # 48-char hex, generated at install

# /etc/vaulthound/agent.conf (on each agent)
SERVER_TOKEN=a1b2c3d4e5f6...  # must match

Every POST /api/ingest from an agent includes Authorization: Bearer <token>. The master rejects anything without a valid token with 401 Unauthorized. The dashboard API itself is intentionally unauthenticated — it's designed to run inside your network, behind a VPN or firewall.

Both config files are written with mode 640 (readable only by root and the vaulthound service user). The service user has no shell, no home directory, and no sudo access.

Installation in Two Commands

The entire installation is handled by two shell scripts. No Ansible, no Docker Compose, no Kubernetes.

Master Server

git clone https://github.com/krishnabagal/VaultHound.git
cd VaultHound/vaulthound-server
sudo bash install-master.sh

The script detects your OS (Ubuntu/Debian/RHEL/Amazon Linux), installs Node.js 20 via the official NodeSource repo, creates a vaulthound system user, deploys the server to /opt/vaulthound/master/, writes the config with a generated token, installs a systemd service, and opens the firewall port. At the end it prints the SERVER_TOKEN to copy for agent setup.

Agent (on every machine to scan)

cd VaultHound/vaulthound-agent
sudo bash install-agent.sh

The agent installer prompts for the master URL and token, then installs Trivy using the official method for your distribution (apt repo for Debian/Ubuntu, yum repo for RHEL/CentOS, install script fallback for others), downloads and compiles Go 1.22, builds the agent binary, writes the config, and starts the vaulthound-agent systemd service.

Manual scans (no service required)

# Scan and exit
vaulthound-agent --dir /var/www/html
vaulthound-agent --image nginx:latest
vaulthound-agent --repo https://github.com/org/repo
vaulthound-agent --auto  # scan all running containers

# Verbose output
vaulthound-agent --dir /app --log

What Gets Scanned

Vulnerabilities — OS packages (Alpine, Ubuntu, Debian, RHEL, Amazon Linux) and language packages (npm, pip, Maven, Gradle, Go modules, Cargo, RubyGems, NuGet, Composer).

Secrets — hardcoded API keys, tokens, passwords, certificates, private keys. Trivy's secret scanner covers AWS, GCP, Azure, GitHub, Slack, Stripe, and hundreds of other patterns.

Misconfigurations — Dockerfile best practices, Kubernetes manifests, Terraform, CloudFormation, ARM templates — anything Trivy's misconfiguration scanner supports.

The Tech Stack

Who Should Use This

• DevOps and Platform Engineers who want a single pane of glass across all their servers without a SaaS subscription

• Security Engineers who need continuous scanning without shipping code metadata to third parties

• Startups that want professional-grade visibility at zero licensing cost (runs fine on a $5/month VPS)

• Regulated industries (finance, healthcare, government) where data must stay on-premises

• Developers who want to catch secrets and CVEs before code reaches production

• MSPs and consultants who deploy one master per client environment

What's Next

The project is actively developed. The roadmap includes:

• PostgreSQL / SQLite persistence (currently in-memory, resets on restart)

• Webhook notifications (Slack, Teams, PagerDuty) on new critical findings

• Kubernetes DaemonSet deployment for the agent

• GitHub Actions integration for CI/CD pipeline scanning

• CVE suppression / ignore rules per target

• Multi-user authentication for the dashboard

Try It, Star It, Contribute

VaultHound is MIT-licensed, free forever, and open to contributions.

If you've ever stared at a wall of Trivy JSON output wishing you had a proper dashboard — or paid a SaaS vendor just for visibility into your own servers — give VaultHound a try.

GitHub: https://github.com/krishnabagal/VaultHound

Issues, feature requests, and pull requests are all welcome. If VaultHound saves you time or money, a ⭐ on GitHub goes a long way.

Built by Krishna Bagal. Powered by Trivy. Licensed under MIT.
